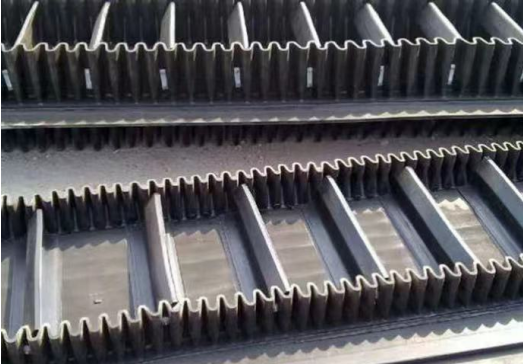

The characteristics of the side conveyor belt
Flange conveyor belt can make all kinds of bulk materials to 0-90 degrees for any Angle of continuous transport, with large transport Angle, wide range of use, small footprint. No transfer point, reduce civil investment, low maintenance costs, large throughput, etc., to solve the ordinary conveyor belt or pattern conveyor belt can not achieve the transmission Angle. The corrugated flange conveyor belt can be designed as a complete conveying system according to the requirements, avoiding intermittent conveying and complex conveying lifting system. The conveyor belt can transport a variety of bulk materials in horizontal, inclined, vertical and variable Angle directions, from coal, ore, sand to fertilizer and grain.
The material size is not limited, from very small particle size to 400mm large particle size, the throughput can be from 1 cubic meter/hour to 6000 cubic meters/hour.
The relationship between the diameter of the transmission drum and the distribution layer of the conveyor belt, the matching of the transmission drum and the reversing drum, and the requirements for the groove Angle of the roller should be reasonably selected according to the design regulations of the conveyor.
The feeding direction should follow the running direction of the conveyor belt. In order to reduce the impact of the material falling on the conveyor belt, the chute should be adopted to reduce the falling distance of the material. The receiving section of the conveyor belt should shorten the distance between rollers and use buffer rollers as leakage materials. Soft and moderate baffle plate should be used for belt compliance, so as to avoid hard baffle plate and scratch the belt surface of the conveyor belt.
